Size 72 Mtr. X 6.5 Mtr.
Maximum Speed – 22 M/Sec

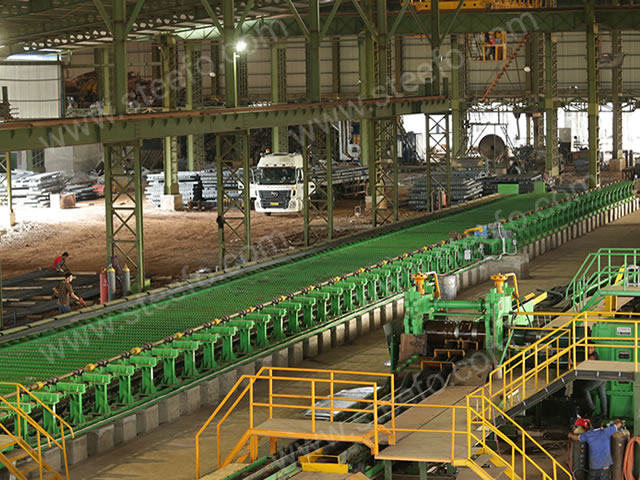

Rack type automatic Cooling Bed Including.
Walking beam device
- Teeth Pitch – 75mm
- Drive Shaft with Coupling
- Ecentric Cam Wheel
- Plumer Block for Long Shaft
- Gear Motor for Line up Rollers
- Walking Beam main Drive Motor DC 55kw x 750 RPM with worm Reducer & Common Base with Necessary Parts
Transfer Out by ecentric device
- Main Motor AC 30 HP x 4P with Brake
- Worm Gear Reducer
- Drive Shaft with Coupling
- Plumer Block for long Shaft
- Ecentric Cam Wheel
Run- out roller table
- Roller Pitch – 1500mm
- Roller size 216 Ø x 500 B.L.
- Drive Motor – 5 HP AC x 4 P
Air Cylinders, Solenoid Valves & Anchor Bolts
Electric Panels
- MCC Panel
- Distribution Panel
- PLC Panel
- Operation Panel
Cold Shear
Tail Break Pinch Rolls – 2 Nos.
