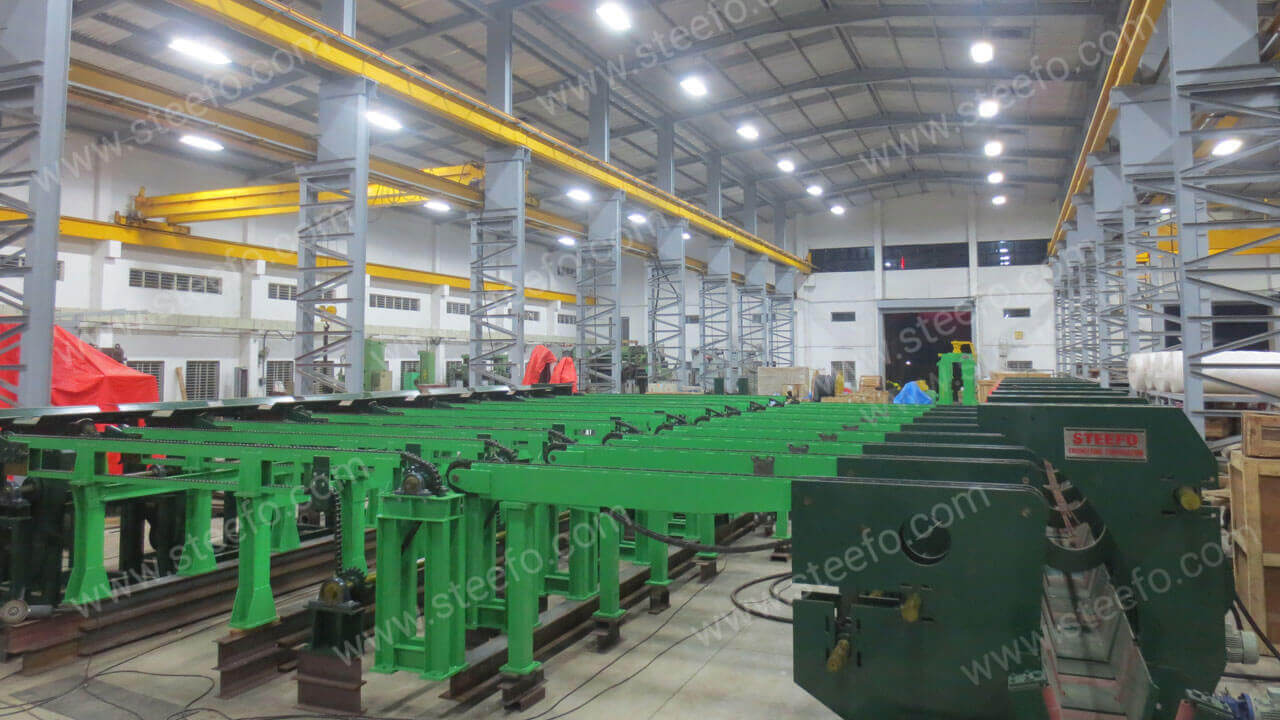

Bar Finishing, Bundling & Tying System
Gauge Conveyor
Total Length – 25M
Conveyor roller size: Ø216.3 x 600 BL (mm)
Driver gear motor: AC-7.5 HP x 4P x 1/7
Gauge stopper cylinder: CB- Ø 150 x 250ST
Packing Bed
Size: 12 MW x 7.0 Ml
Transfer Inlet-Arm unit x 12 M:
Main Shaft: Ø75 x 12 ML
Main drive motor: AC-10 HP x 4P x 1/10
Main Wrom Gear Reducer: A-200 x 1/30
Gear coupling: TY –SB- 150 x 2
Conveyor chain: RS-2120S
Sprocket: RS 120 x 21 NT
Conveyor chain driven unit x 12ML
Main Shaft: Ø65 x 12ML
Main drive motor: AC –10HP x 4P x 1/10
Main Wrom Gear Reducer: A-200 x 1/60
Gear Coupling: TY-SB-150 x 2
Bundling Machine
Type: TBM-570L
Max. Bundled dimension: Ø450 (mm)
Dia of guide track: Ø 700(mm)
Wire Dia: Ø5.5 (mm)
Binding cycle: Max. 7.0 sec. (Excluded wire feed time)
Power source: AC-220V+ 10% x 50Hz.
With base & wire supply device.
Roller Conveyor
Total Length = 31,000 (mm)
V-roller before bundling machine = 15,000 (mm)
Conveyor drive unit:
Drive gear motor: AC-7.5 HP x 4P x 1/19
Conveyor roller: Ø216.3 x 450W
Coupling: RF-265
Roller Chain & Sprocket: RS 100
Free V-roller unit:
V-roller: Ø 89.1 x 406W
Bearing:6207Z
Bundle are drive unit:
Driver gear motor: AC-5HP x 4P x 1/19
Conveyor roller: Ø216.3 x 450W
Roller Chain & Sprocket: RS100
Clamp by air cylinder: TC- Ø250 x 400 ST
Roller Conveyor after bundling -= 16,000 (mm)
Conveyor drive unit:
Driver gear motor: AC-7.5 HP x 4P
Conveyor roller: Ø267.4 x 600W
Clamp by air cylinder: TC- Ø250 x 400 ST
Stopper: TC- Ø250 x 530ST
